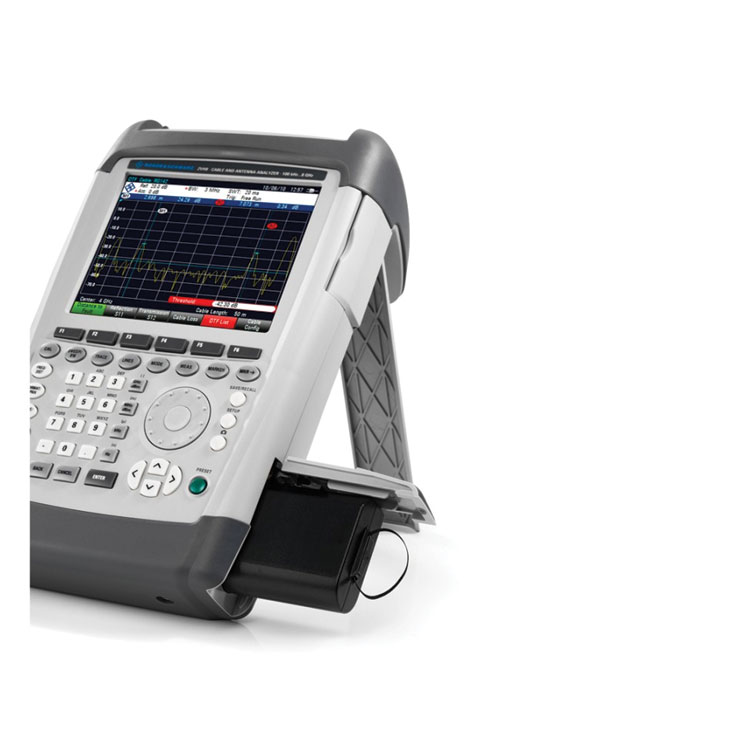

｜100 kHz up to 3.6 GHz / 8 GHz
｜100 dB (typ.) dynamic range for transmission
measurements
｜Fast and consistent measurements by
using preconfiguration wizard
｜Remote control via free software or app
｜Rugged, splash-proof housing for
use in the field
Fast and accurate
Fast and accurate measurements
Wizard function allows users to preconfigure test setups before going to the field.
Pictures and test instructions can be inserted to aid the technican on site.
This speeds up measurements on-site and reduces measurement errors due to entering the wrong parameters or having the wrong setup.
The wizard function simplifies complex test sequences and eliminates the need to always ask how to configure the test setup.

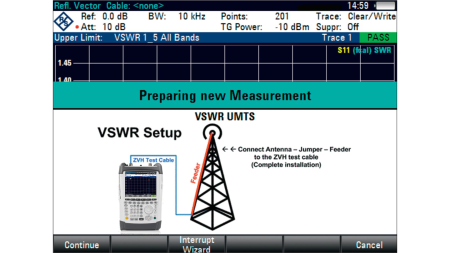

Fast and accurate measurements - use the wizard
Predefined test sequence, pictures and comments can be inserted to provide helpful information to the user.

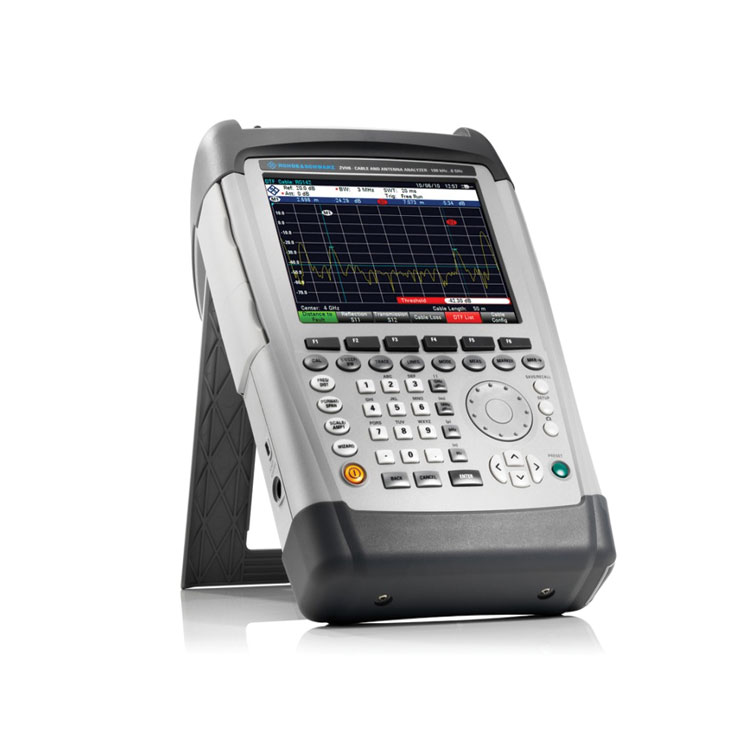

Combination analyzer
The capability of the R&S®ZVH can be extended by purchasing keycodes licences.
With R&S®ZVH-K42, it can perform 2-port vector network analysis to determine the matching and transmission characteristics of filters, amplifiers, etc.
R&S®ZVH-K1 adds spectrum analysis to measure the signal occupied bandwidth, field strength and spurious emissions, etc.
There are more functions that the analyzer can handle. It is an ideal, handy tool in the field.

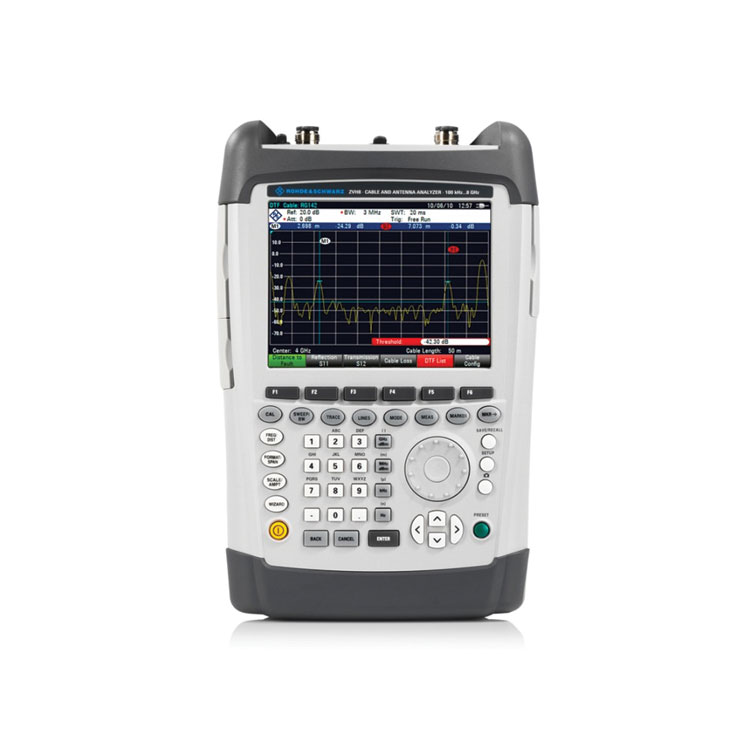

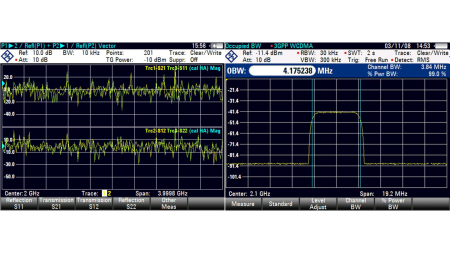

2-port measurements, spectrum analysis
Measuring the S-parameters of a device under test(DUT).
Measuring the occupied bandwidth of a signal.

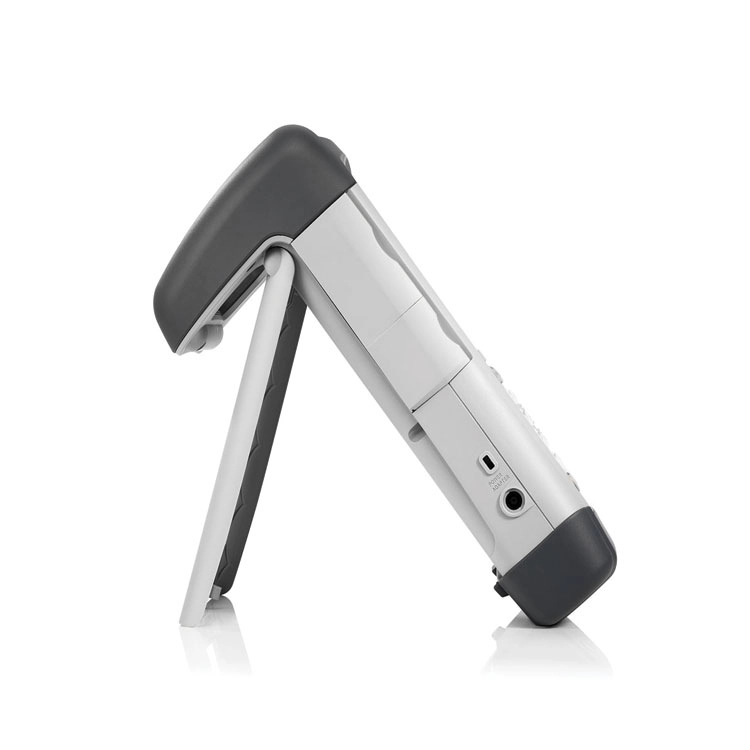

Ergonomic design

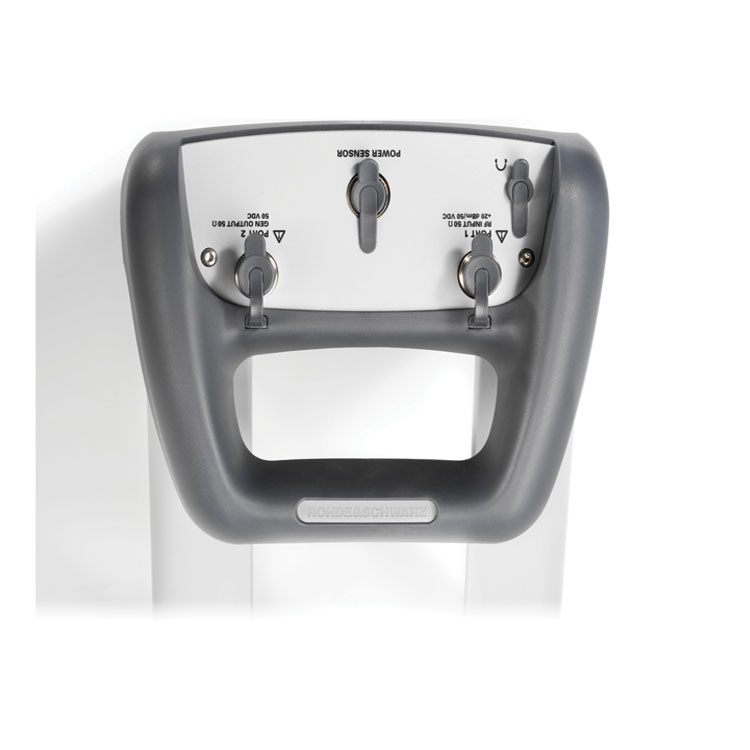

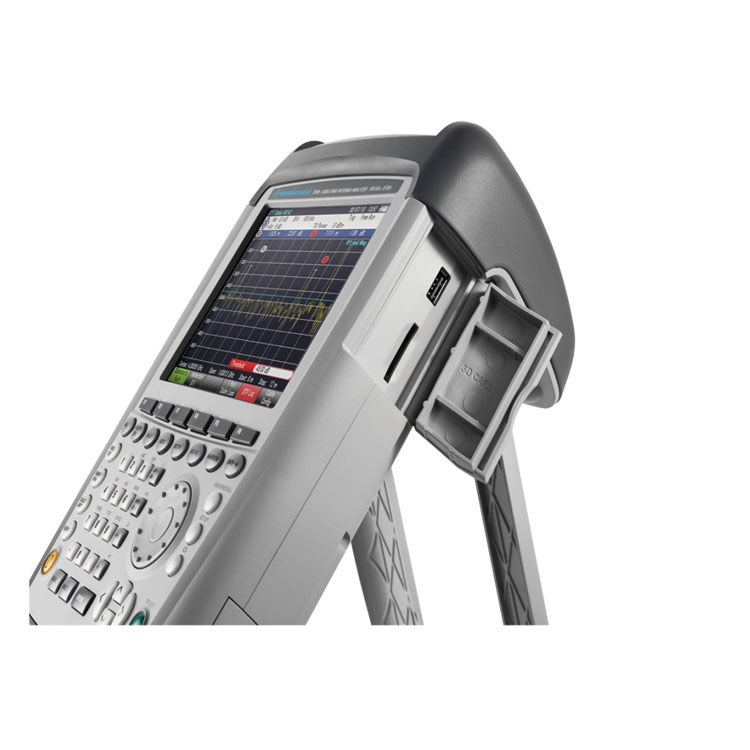

The top handle makes it easy to carry the analyzer.

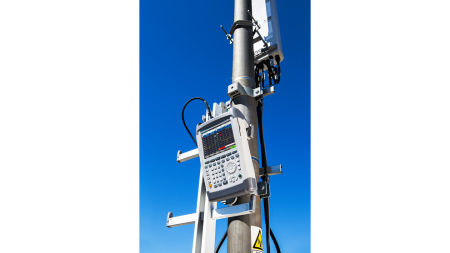

It can also hang on the tower or equipment rack for hands-free operation on site without needing additional accessories to support it.
Designed withe portability in mind
No matter where your task takes you, you can conveniently take and measure with the R&S®ZVH

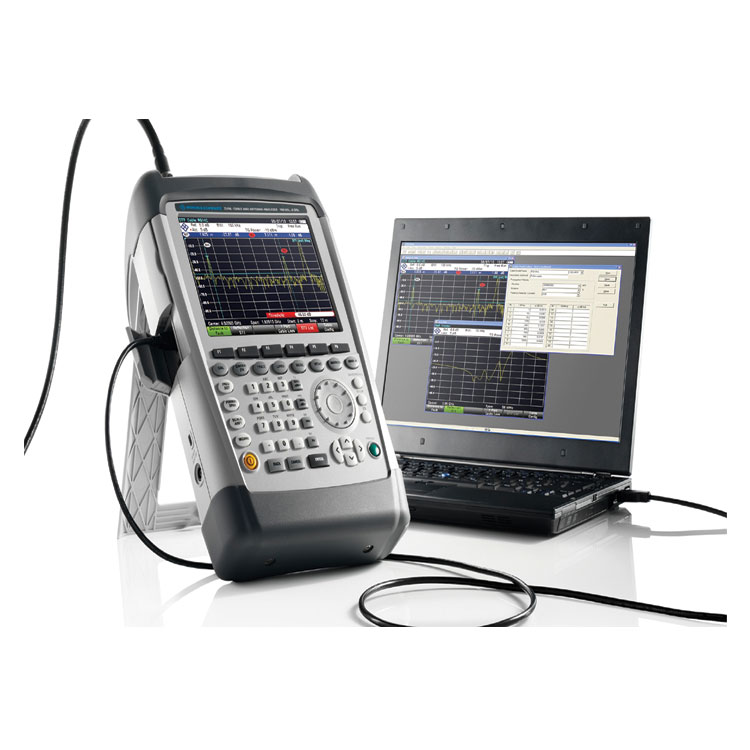

Easy remote control
R&S®InstrumentView is free software to remote control the analyzer, preconfigure measurement settings, perform postanalysis and generate reports.
The connection to the computer or laptop is via USB or LAN interface.
Alternatively, simply connect a commercially available wireless router to the analyzer via LAN interface and
download the free R&S®MobileView app on your smartphone or tablet to remote control the analyzer or transfer files to and from the analyzer.

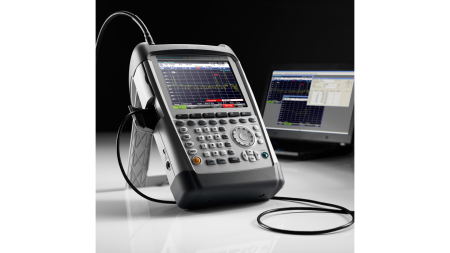

Simple connectivity

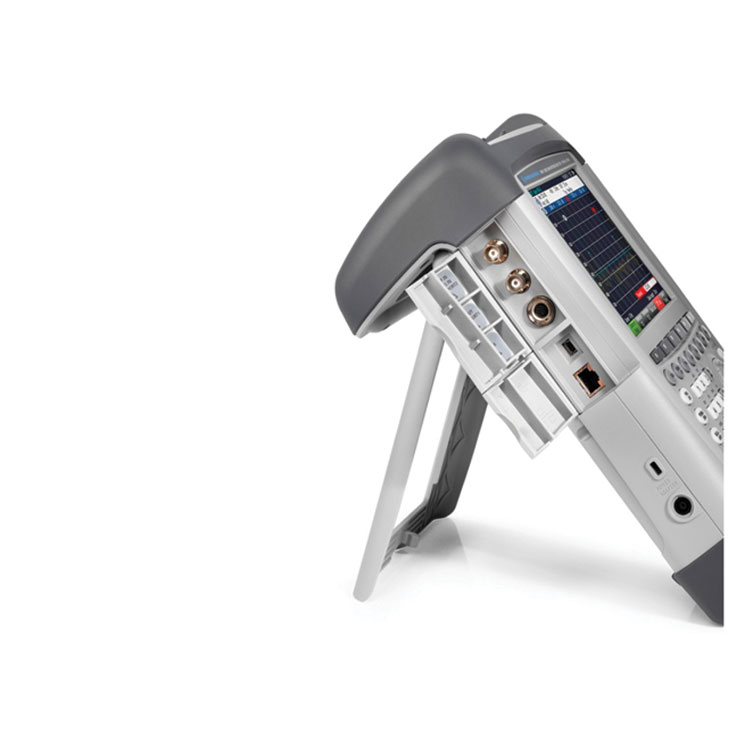

Simple and hassle-free connection via LAN or USB port.
The analyzer can be remote controlled with the free R&S®Instrumentlview software or R&S®MobileView app.
