Light weight, phase stable assembly for space and
airborne applications
Product features
• Impedance 50 Ω
• Applicable up to 40 GHz
• Light weight
• MIL-DTL-17 qualified
• Low loss and high phase stability vs. temperature
• Outgassing free acc. ESA/NASA
• Standard and high radiation resistance version available
Product description

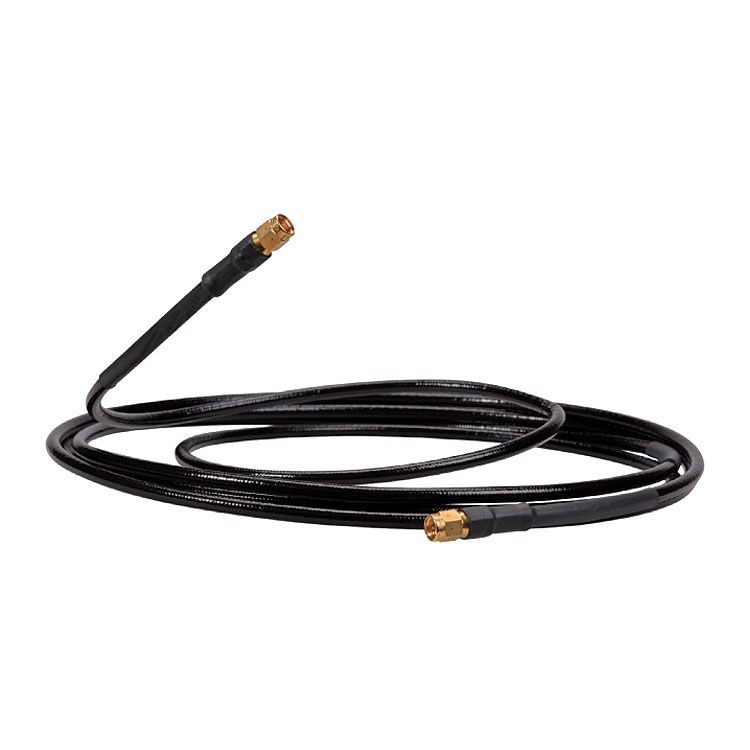

The SUCOFLEX® 340 offers a consistently outstanding mechanical and electrical performance, stability and reliability up to
40 GHz with triple shielding for improved screening attenuation.
The added feature of this SUCOFLEX type is a weight reduction of up to 50 % compared to our conventional products.
Product description
The SUCOFLEX® 340 offers a consistently outstanding mechanical and electrical performance, stability and reliability up to
40 GHz with triple shielding for improved screening attenuation.
The added feature of this SUCOFLEX type is a weight reduction of up to 50 % compared to our conventional products.
