The light weight, high performance microwave cable assembly working up to 8 GHz
Product features
• Impedance 50 Ω
• Applicable up to 8 GHz

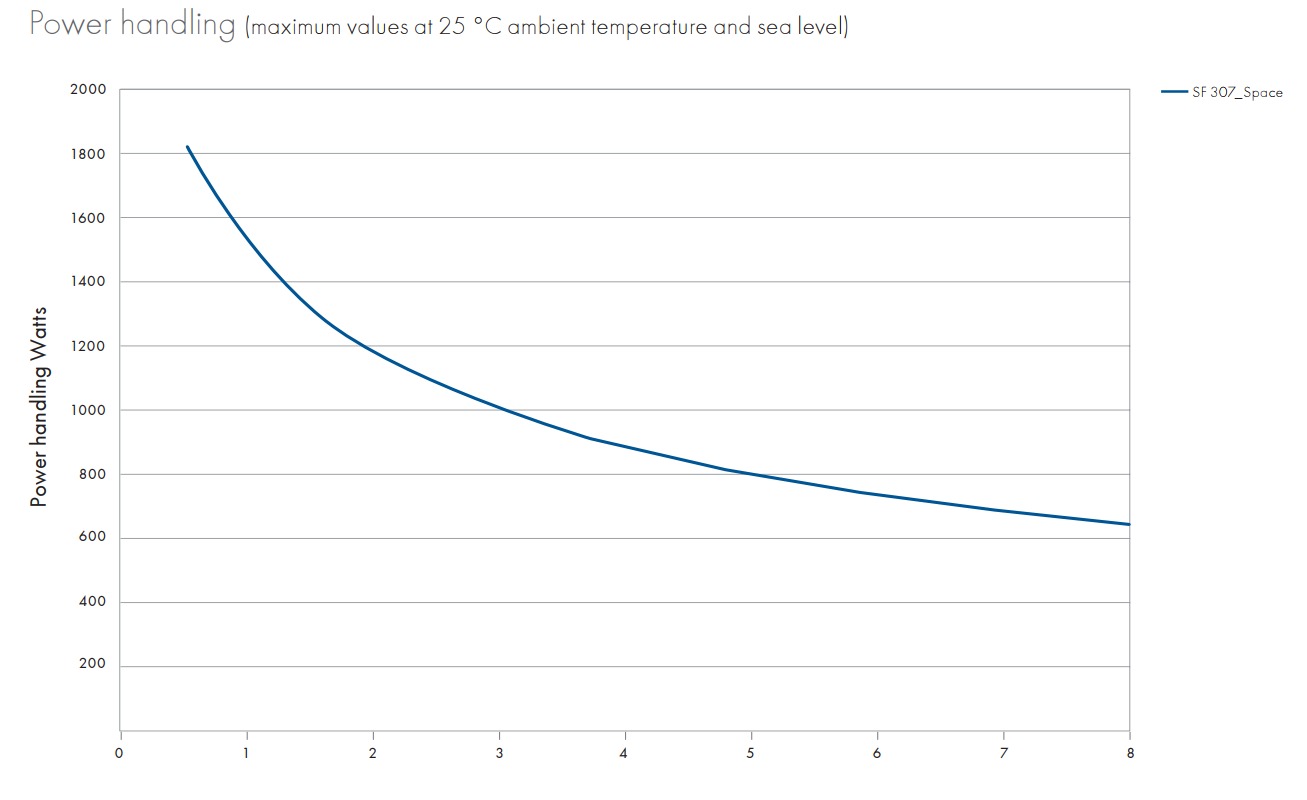

• High power application

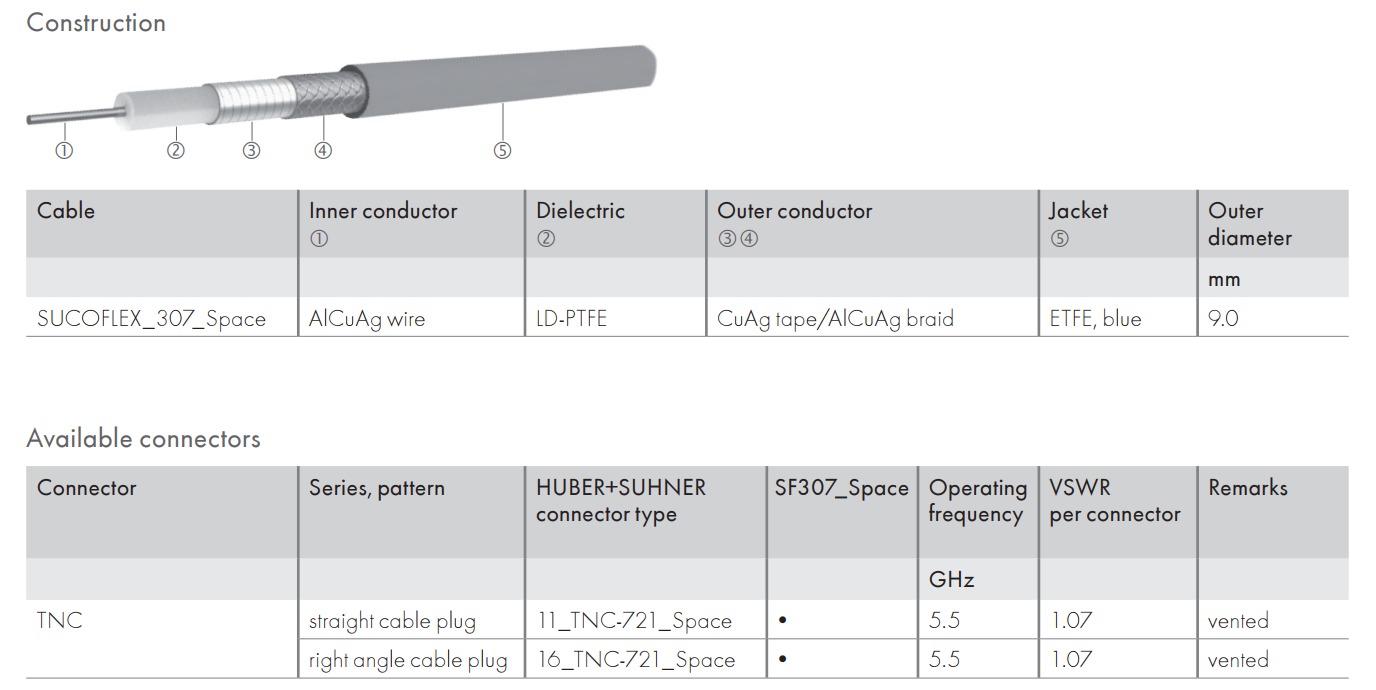

• Centre conductor and braid in aluminum instead of copper
• Production in clean room
• Extensive testing of the assembly
• Customer specific qualification
• All connectors vented
• Outgassing according ECSS-Q-ST-70-02C and
NASA reference publication 1124
• MIL-DTL-17 qualified
• Mechanical stability

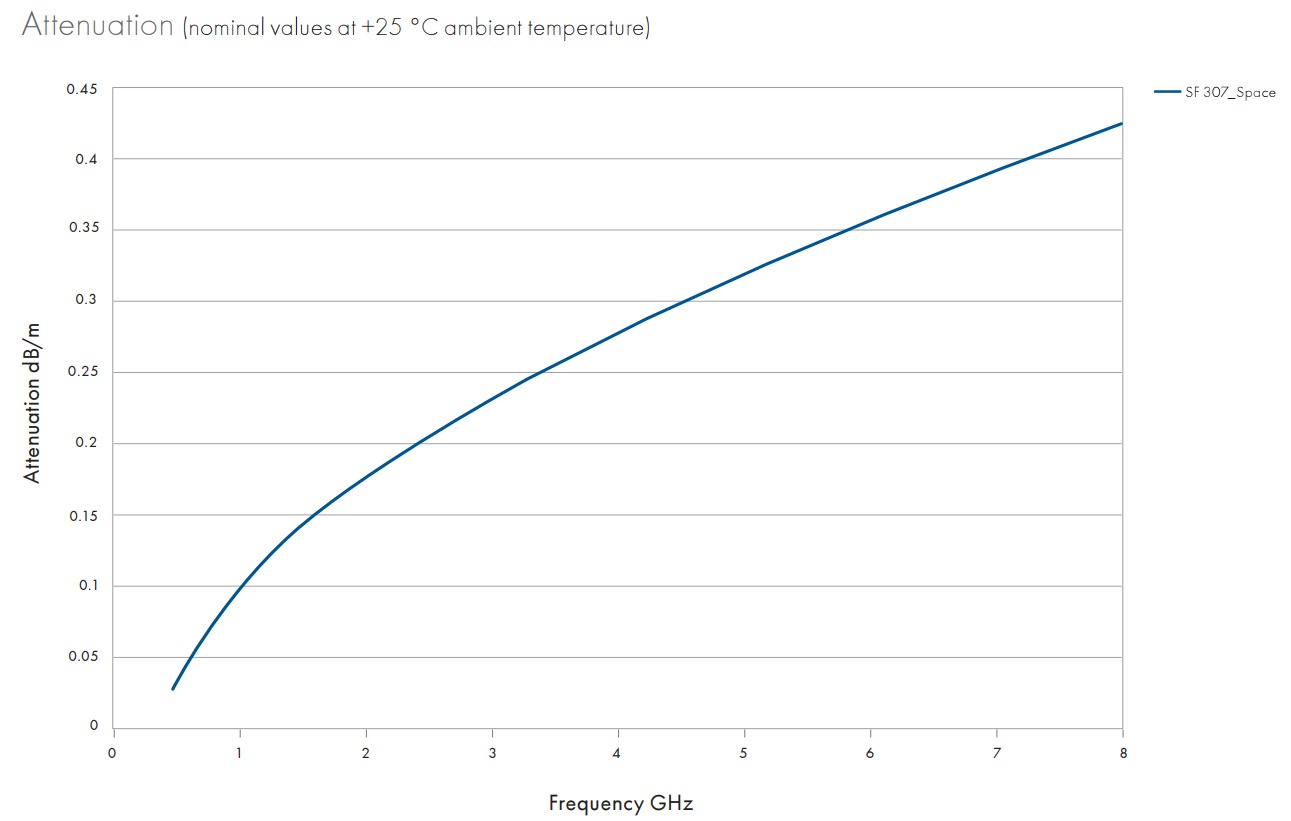

• Low loss
Product description

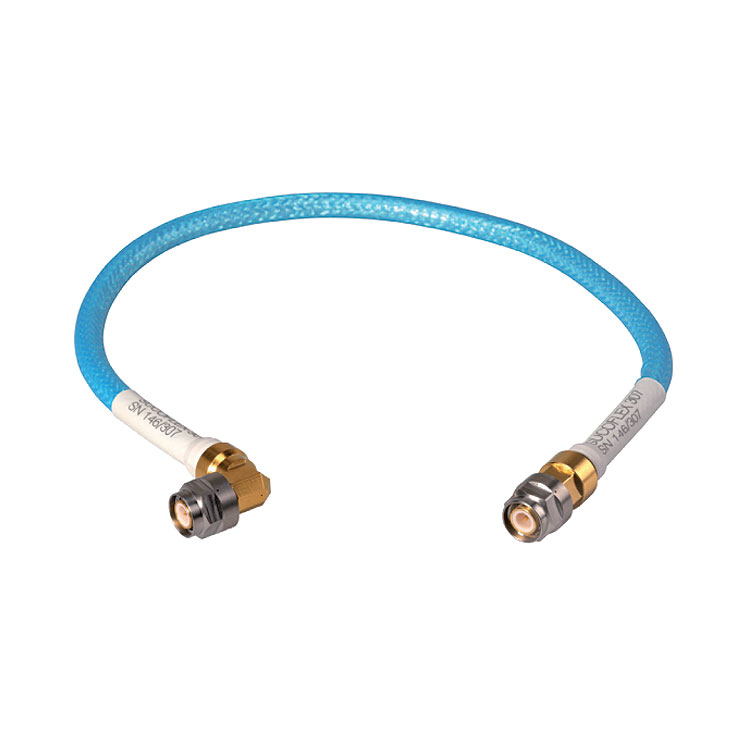

The SUCOFLEX® 307 light weight, high end cable assemblies are designed to provide optimal performance up to 8 GHz
were light weight, high power, stringent electrical requirements – in particular stability and low loss, are important.
