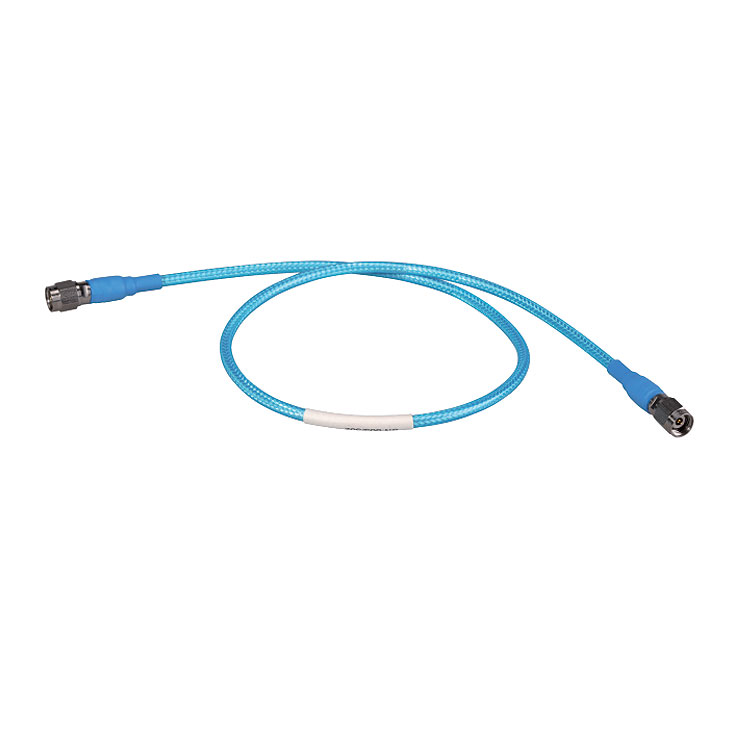

SOCOFLEX® 302
The light weight, high performance microwave cable
assembly working up to 40 GHz
Product features
• Impedance 50 Ω
• Applicable up to 40 GHz
• Up to 35 % weight reduction compared to standard
SUCOFLEX 102 assemblies
• High reliability and stability
• Low loss
제조사 HUBER+SUHNER
Product description
The SUCOFLEX® 302 light weight, high end cable assemblies are designed to provide optimal performance up to 40 GHz
were light weight, stringent electrical requirements – in particular stability and low loss, are important.
Product description
The SUCOFLEX® 302 light weight, high end cable assemblies are designed to provide optimal performance up to 40 GHz
were light weight, stringent electrical requirements – in particular stability and low loss, are important.
