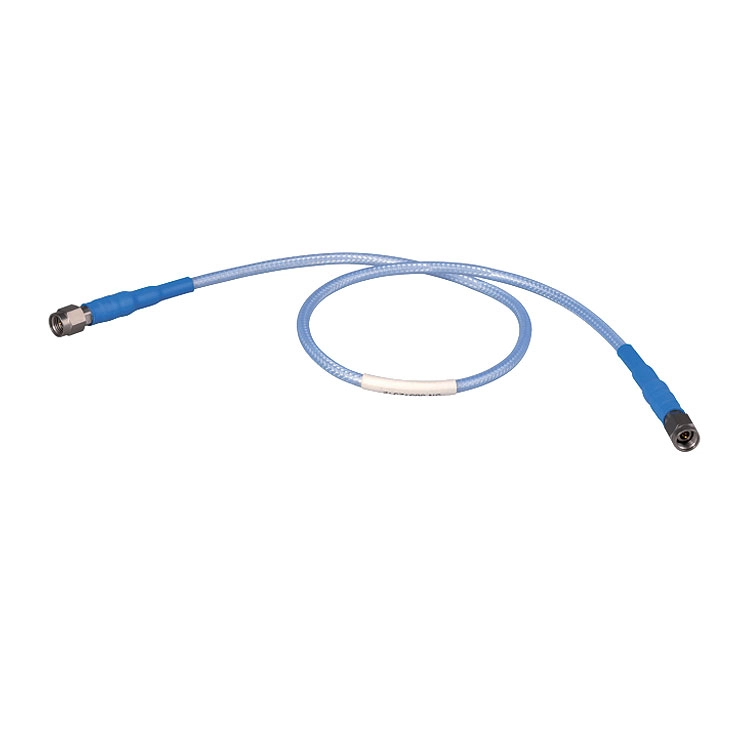

The high performance microwave cable assembly working
up to 46 GHz
Product features
• Impedance 50 Ω
• Applicable up to 46 GHz
• High stability and low loss

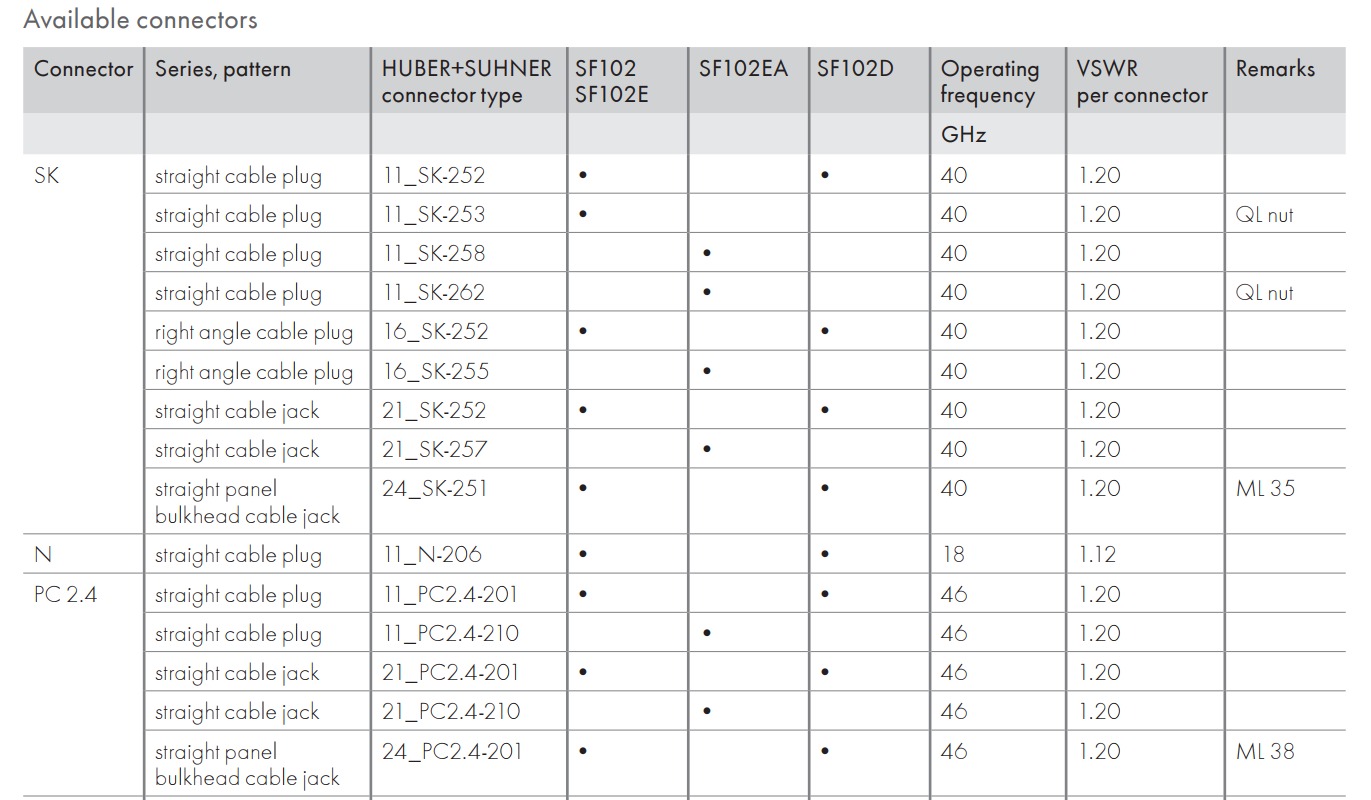

• Wide range of connectors
• LSFH jacket and further ruggedisations on request
Product description
SUCOFLEX® 102 are ideal for applications up to 46 GHz or wherever the weight or the diameter are the critical factors to

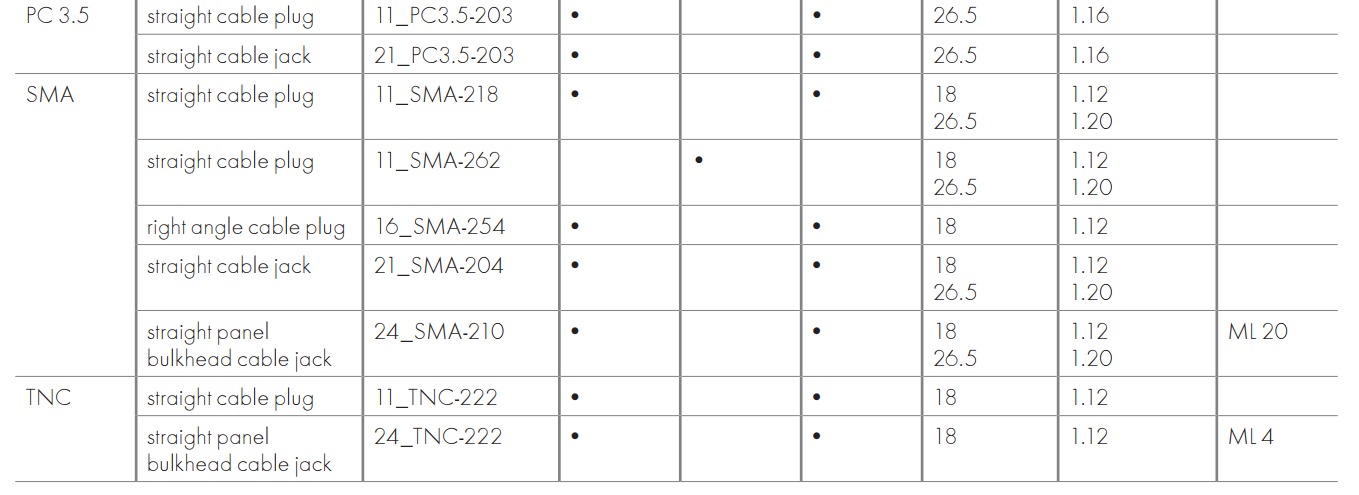

be taken into account. The connectors mainly used here are PC2.
4 and SK, for «low frequency» applications also SMA, N and TNC. Typical applications include test laboratories and aircraft
manufacture.
The available ruggedisations are matched to the particular applications.
Product description
SUCOFLEX® 102 are ideal for applications up to 46 GHz or wherever the weight or the diameter are the critical factors to
be taken into account. The connectors mainly used here are PC2.
4 and SK, for «low frequency» applications also SMA, N and TNC. Typical applications include test laboratories and aircraft
manufacture.
The available ruggedisations are matched to the particular applications.
